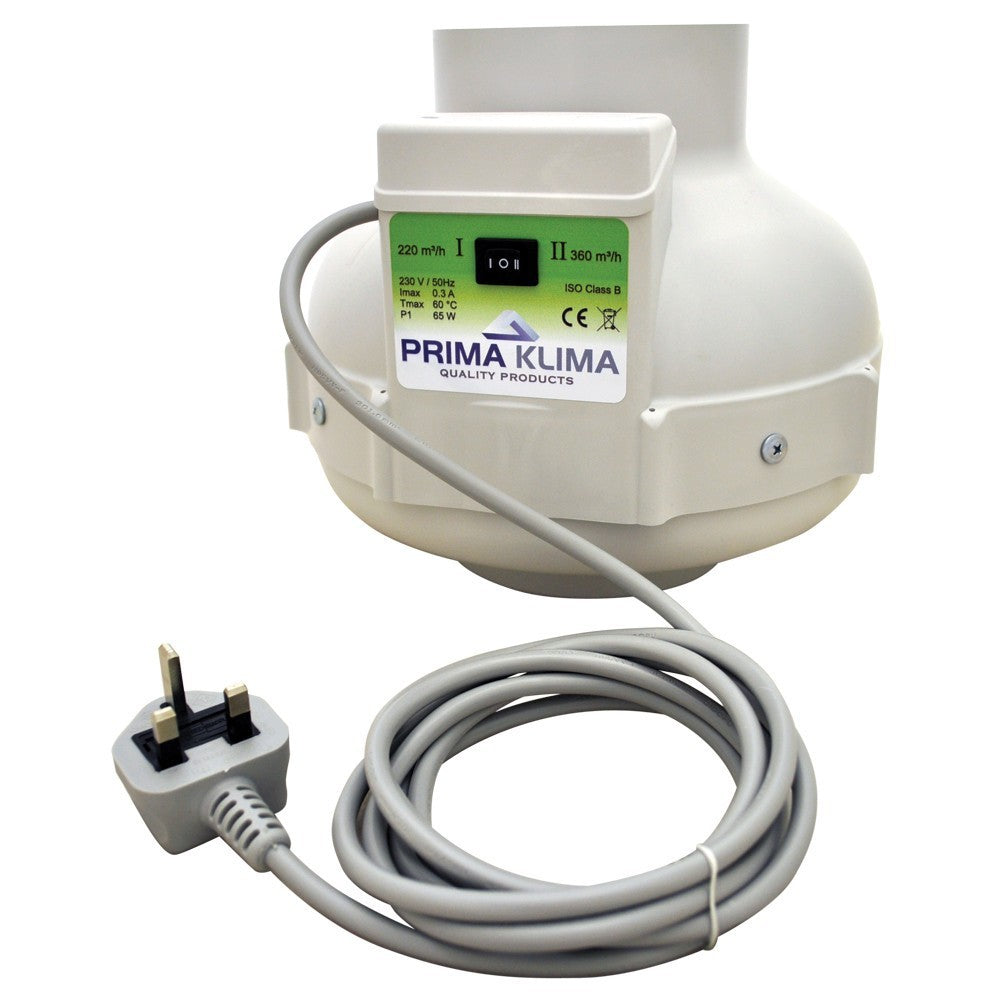

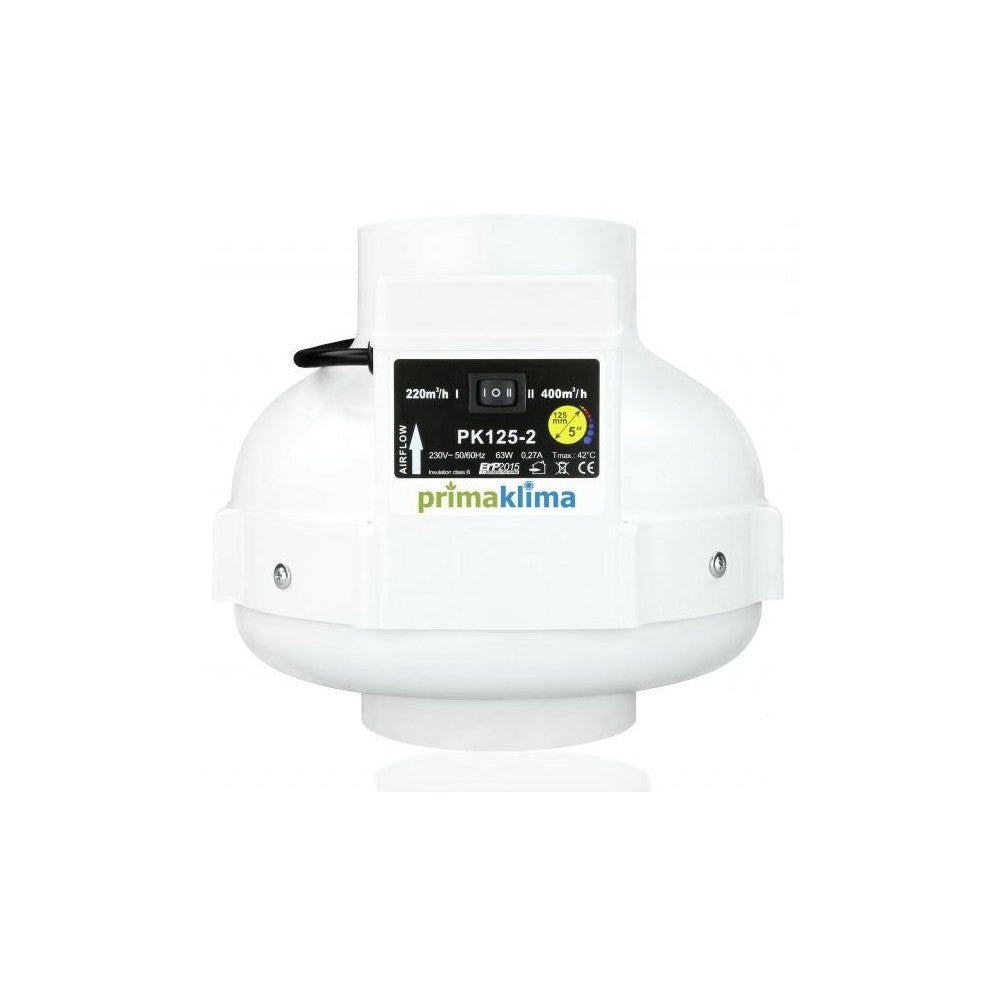

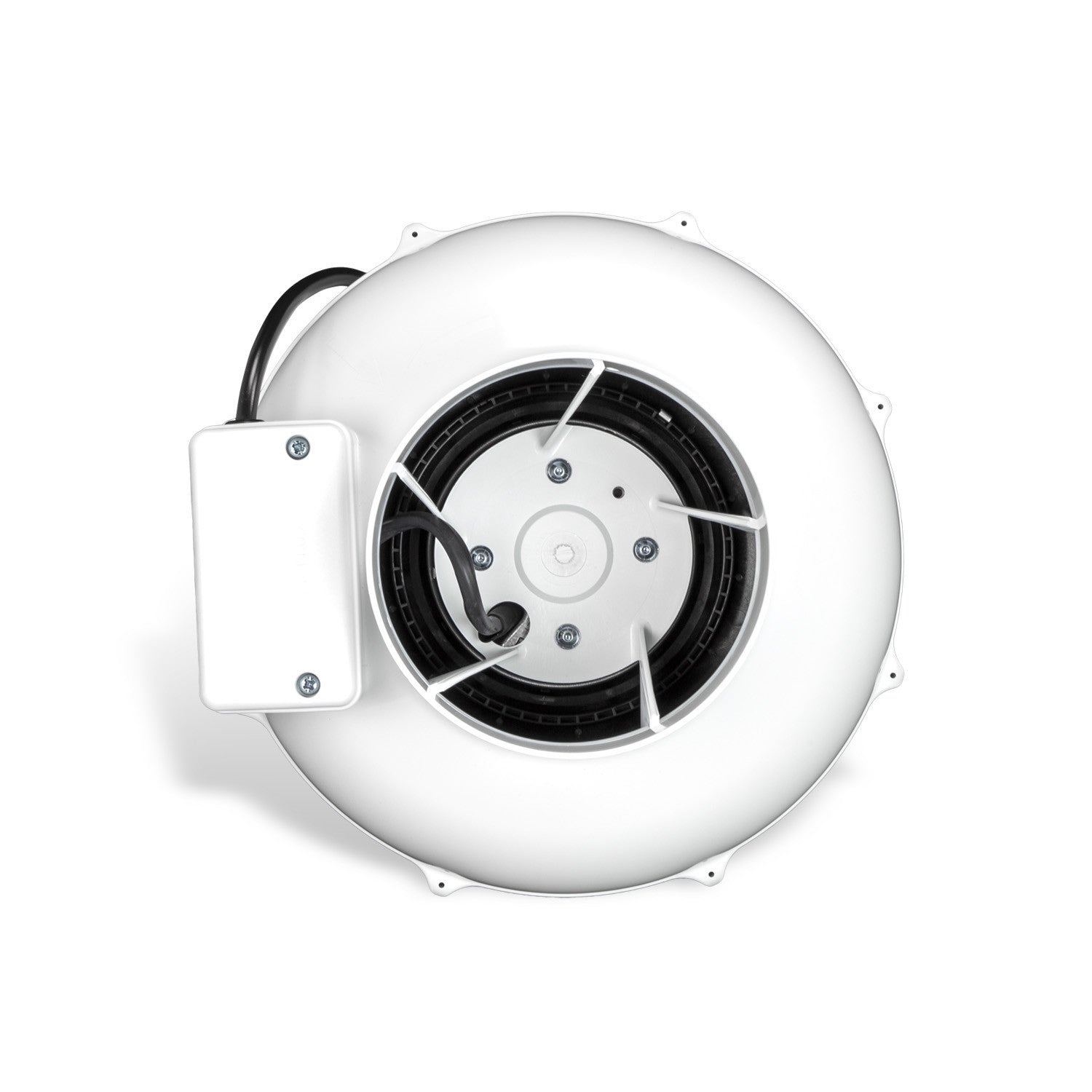

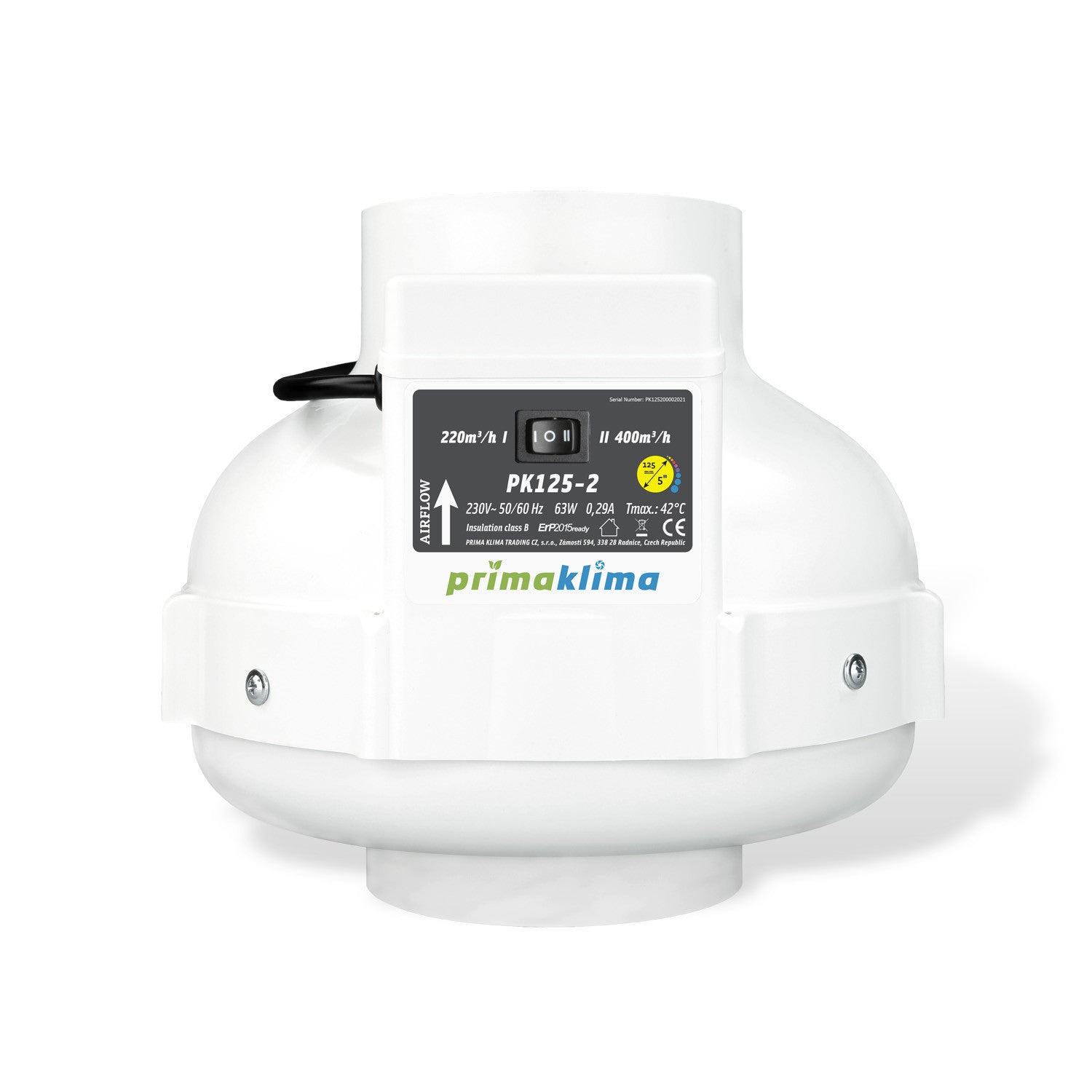

Double fan, highly efficient tube fan with an AC motor from ebm-papst and backwards curved blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.
Characteristics:
- ebm-papst AC motor

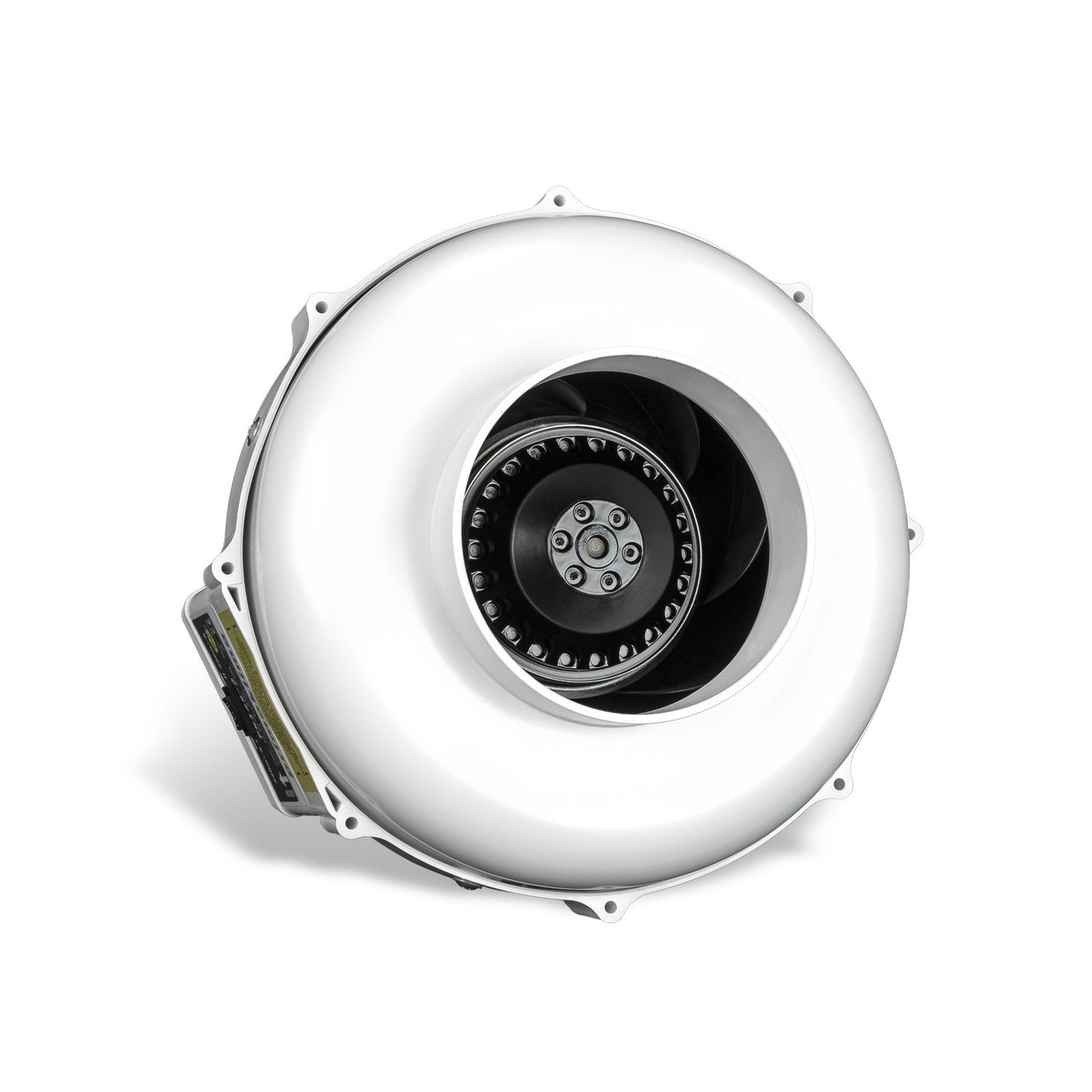

- Backward-curved fan wheels
- Adjustable temperature and speed control
- Aerodynamically optimized shape
- Impact-resistant and robust housing
- connection and control system in the housing
Technical specifications:
- flange: 125 mm
- Max. air flow: 220 / 400 m³/h
- Power: 63 W
- Supply: 230 V, 50/60 Hz, 0.29 A
- Tmax: 50 °C
- Dimensions: 244 x 220 mm (WxH)
- Weight: 2.2 kg
