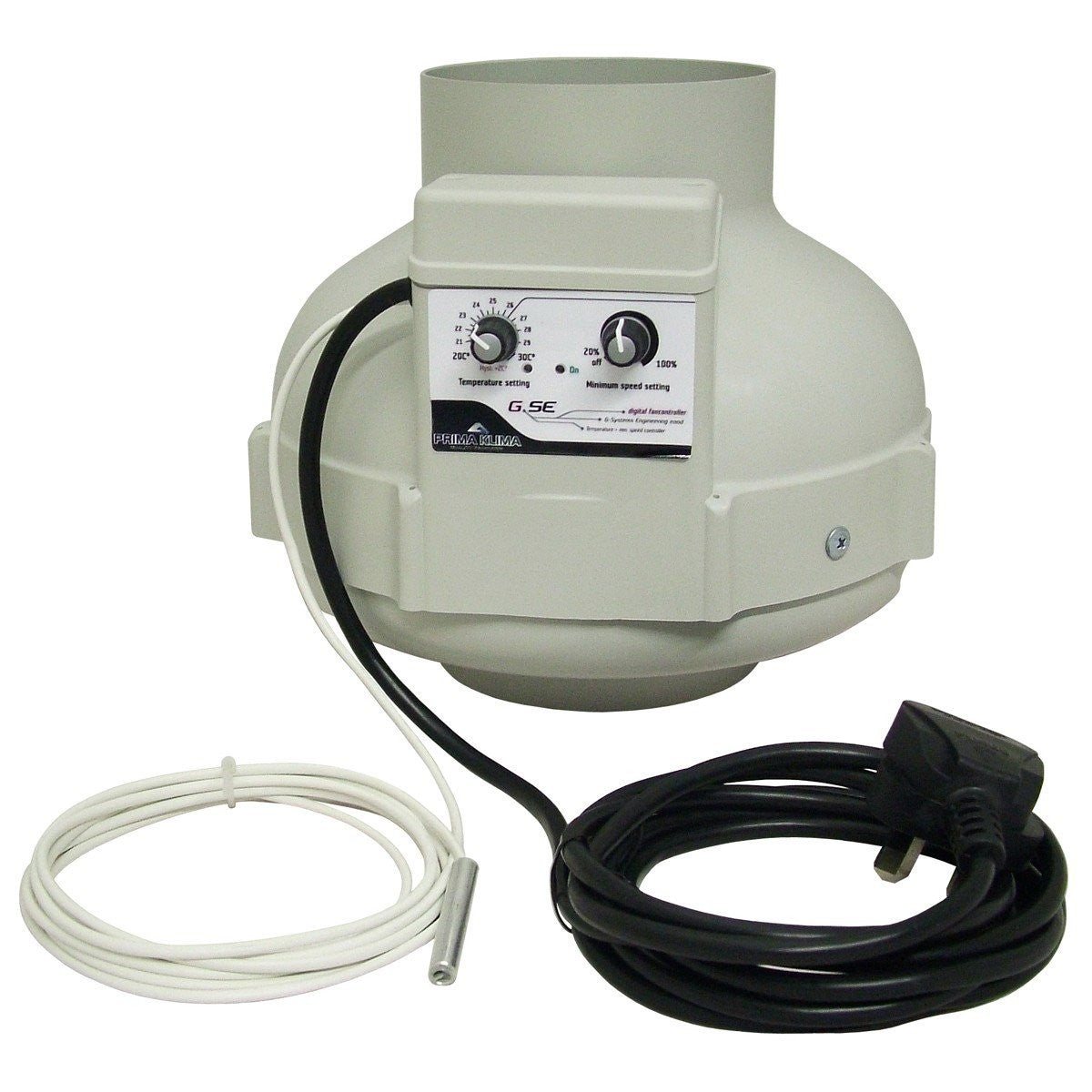

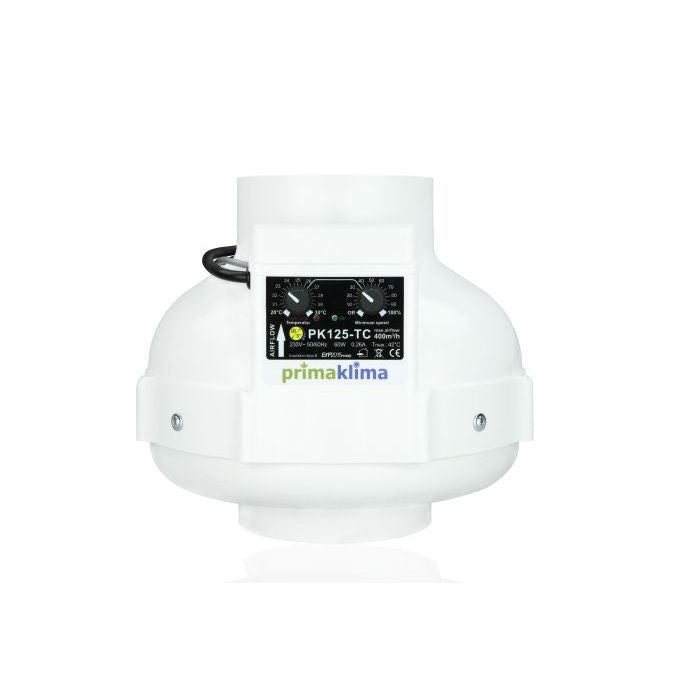

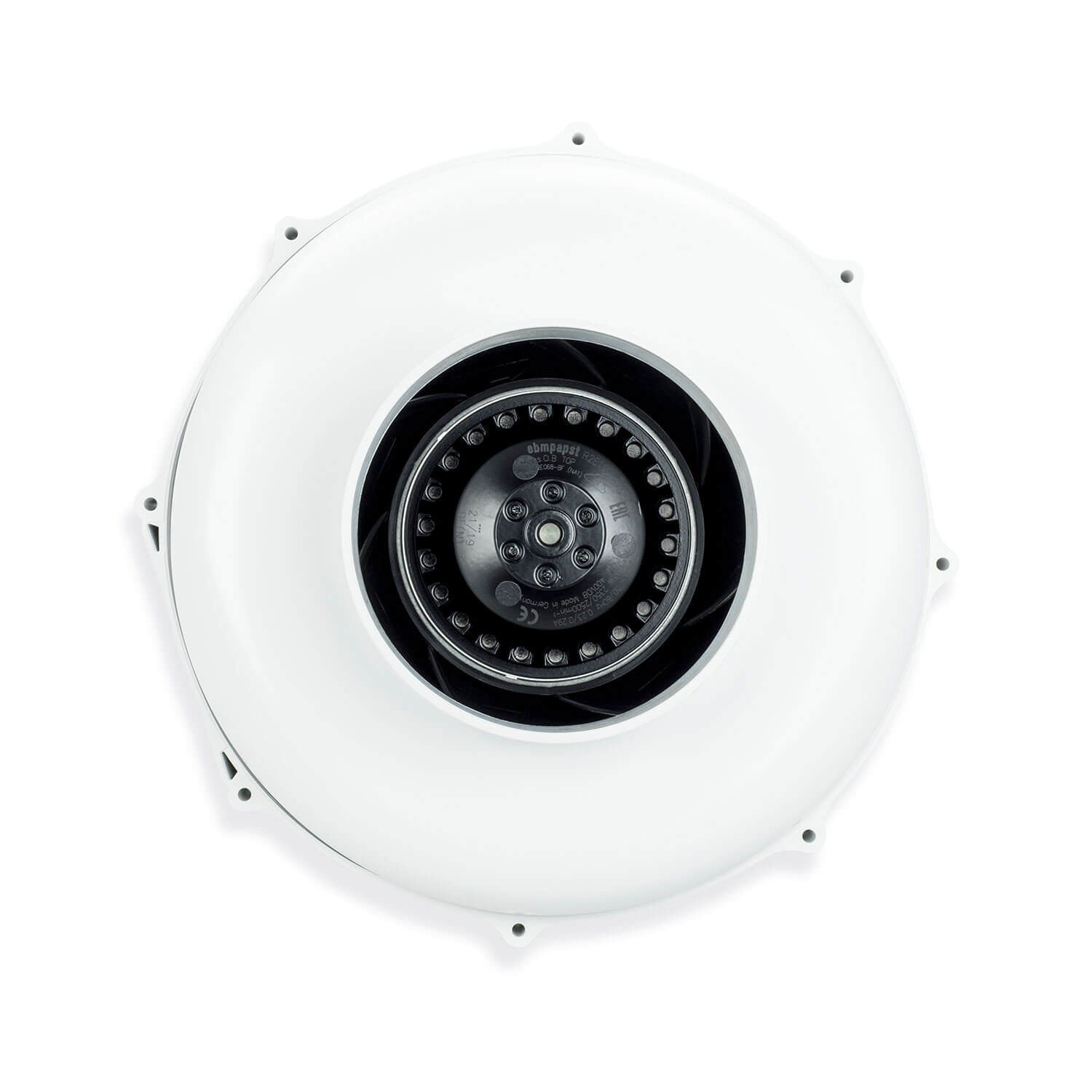

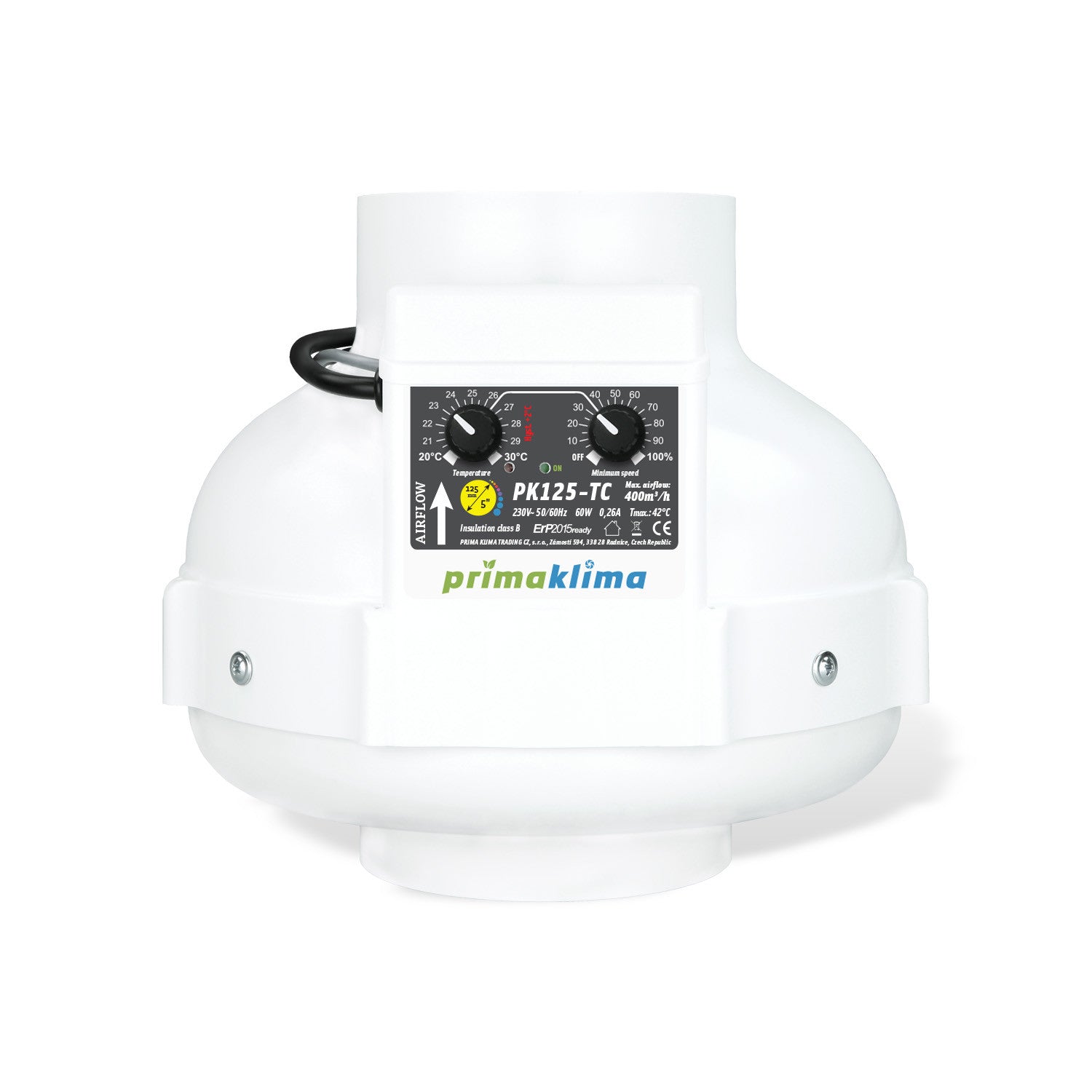

Temperature-controlled, highly efficient tube fan with an AC motor from ebm-papst and backward-curved blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.
Characteristics:
- ebm-papst AC Motor
- Backward curved blades
- Low energy consumption
- Low noise emissions
- Adjustable temperature and speed control
- Aerodynamically optimized shape
- Impact-resistant and robust protection
- connection and control system in the housing
Technical specifications:
- flange: 125 mm
- Max. air flow: 400 m³/h
- Power: 60 W
- Voltage: 230 V, 50/60 Hz, 0.26 A
- Tmax: 50 °C
- Dimensions: 244 x 220 mm (w x h)
- Weight: 2.3 kg
