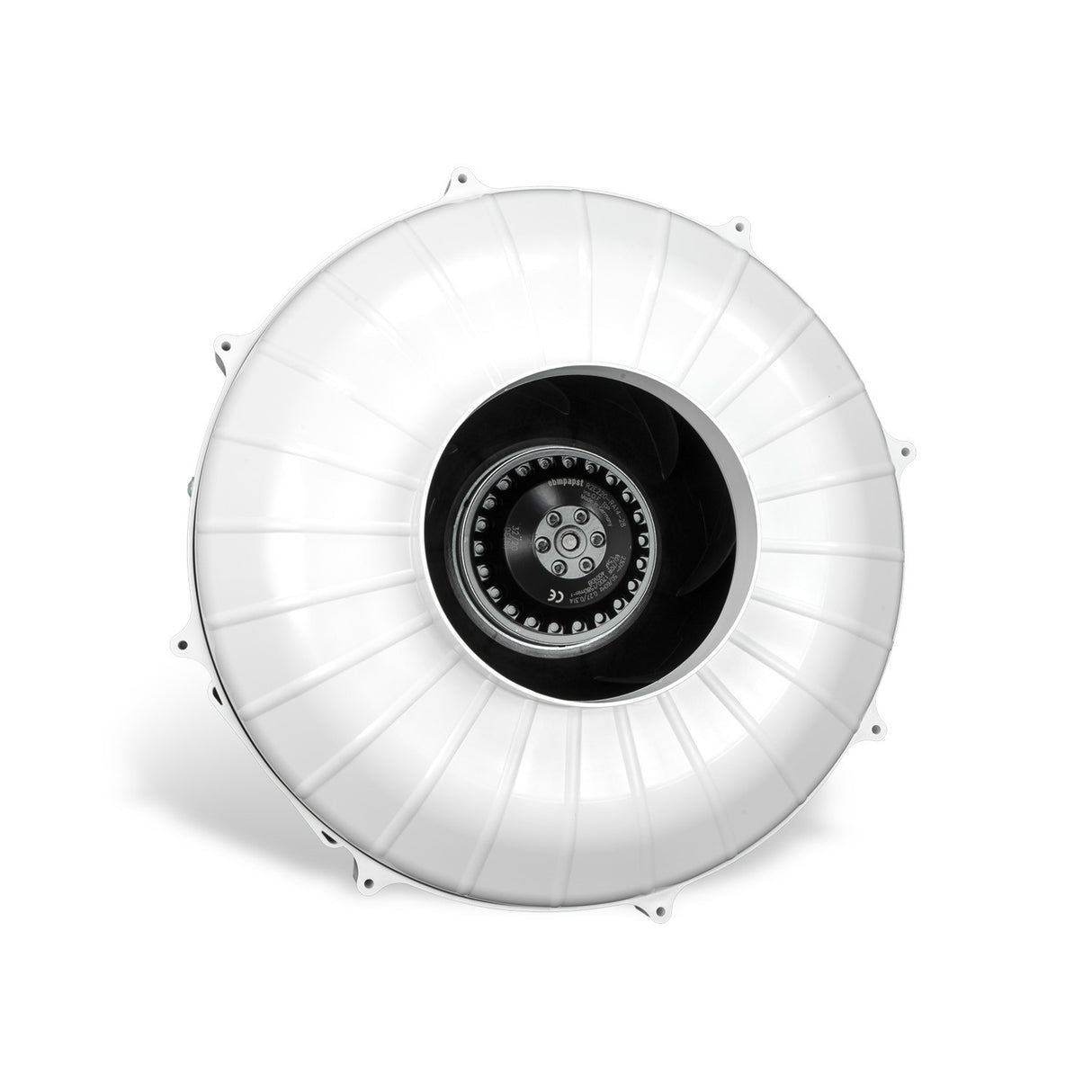

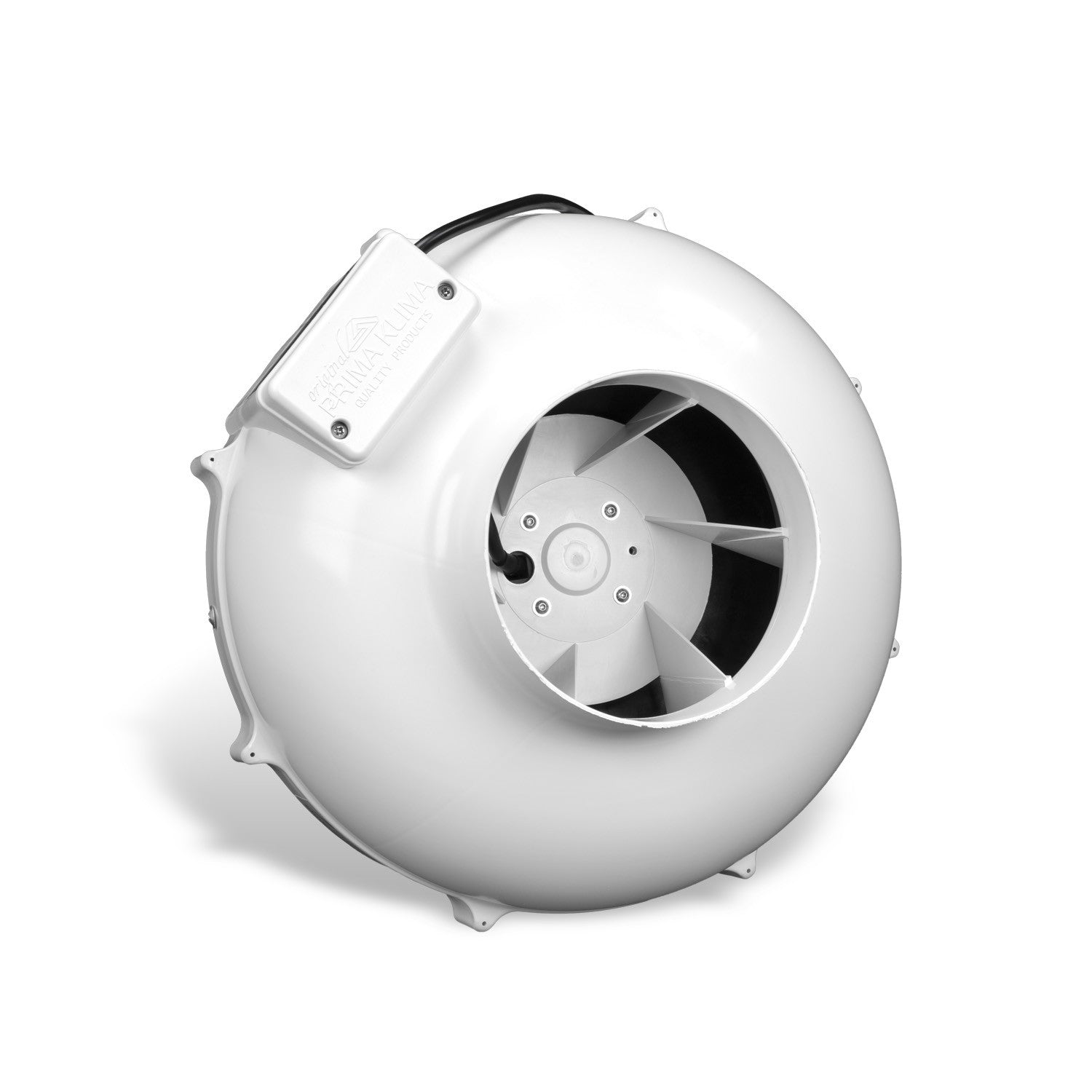

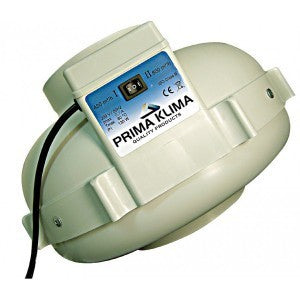

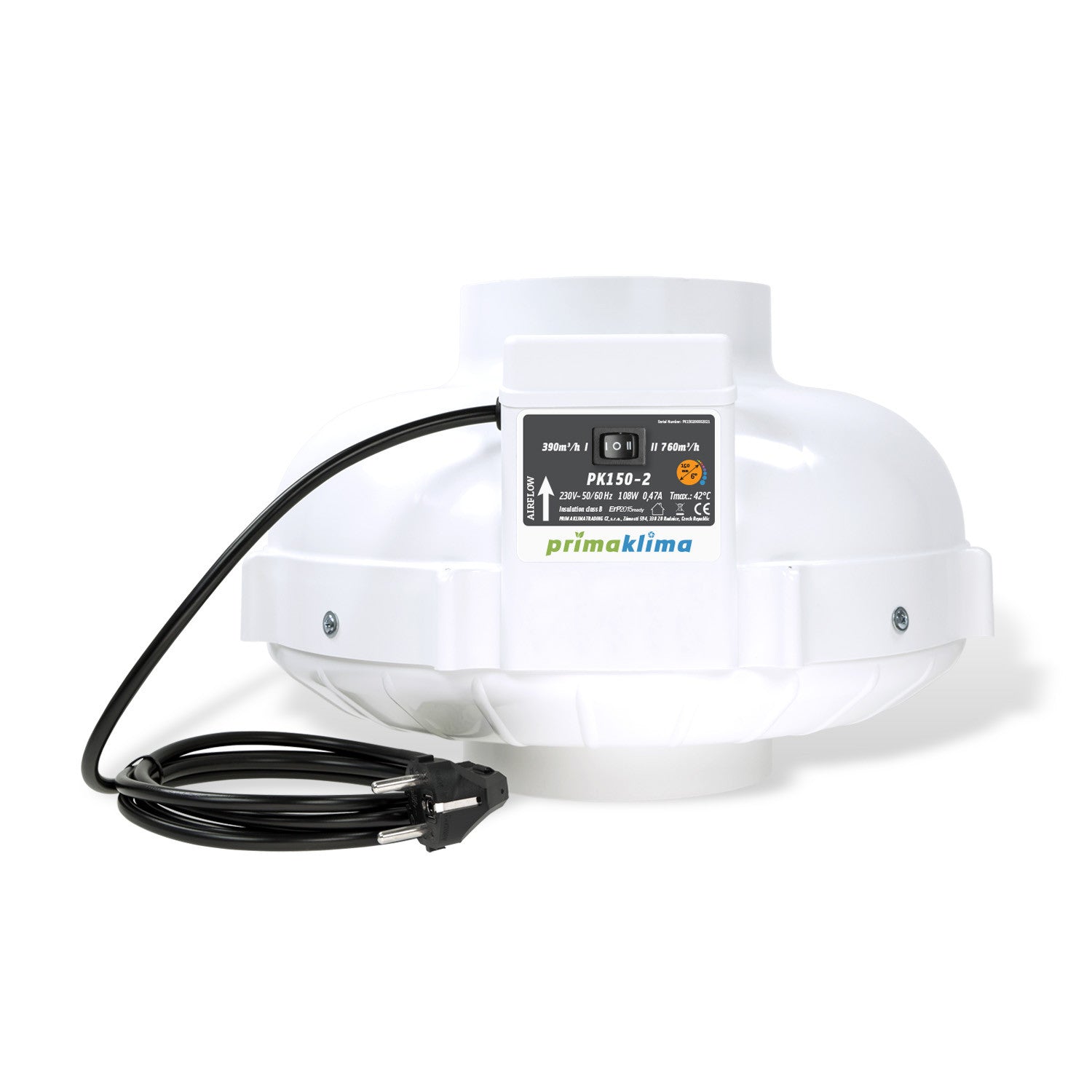

High efficiency double speed fan, equipped with an AC motor from ebm-papst and backward curved blades. The fan has been optimally adapted to the housing, which is made of high-impact, non-flammable polyamide (nylon). Maintenance-free ball bearings with a long service life ensure exceptionally quiet motor operation.
Characteristics:
- ebm-papst AC Motor
- Backward curved wheel
- Adjustable temperature and speed control
- Aerodynamically optimized shape
- Impact-resistant and durable housing
- connection and control system in the housing
Technical specifications:
- flange: 150 mm
- Max. air flow: 390 / 760 m³/h
- Power consumption: 108 W
- Voltage: 230 V, 50/60 Hz, 0.47 A
- Tmax: 50 °C
- Dimensions: 338 x 233 mm (WxH)
- Weight: 3.3 kg
