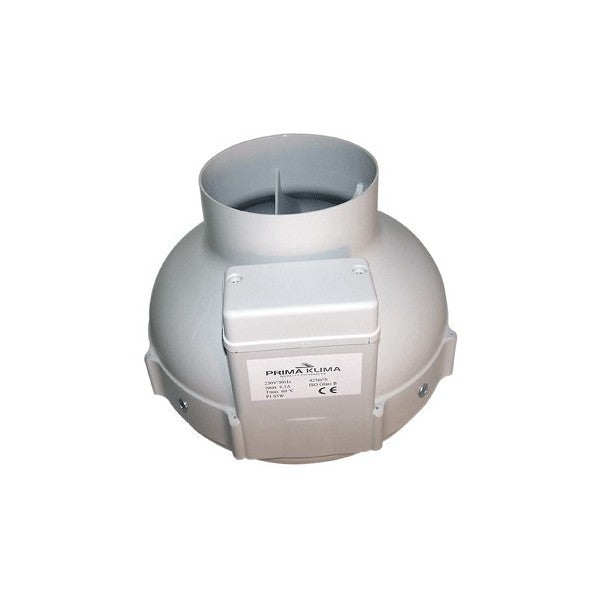

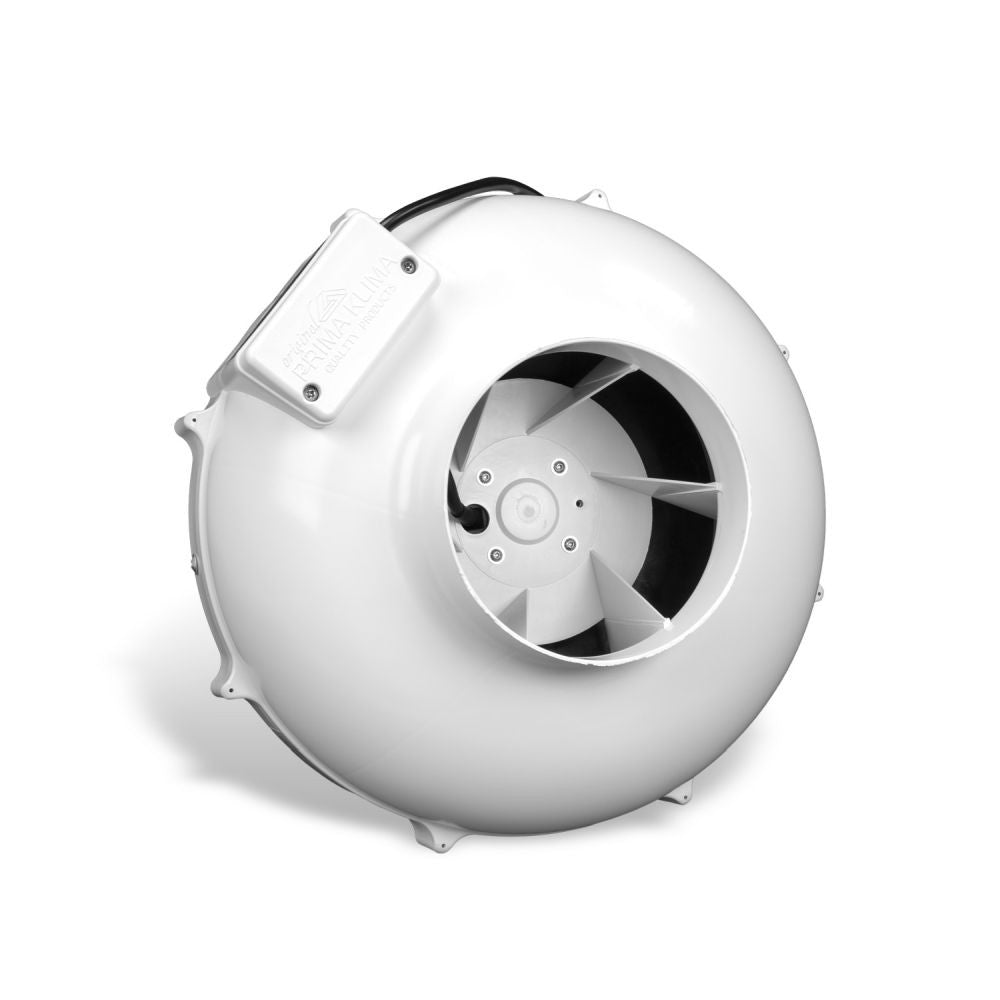

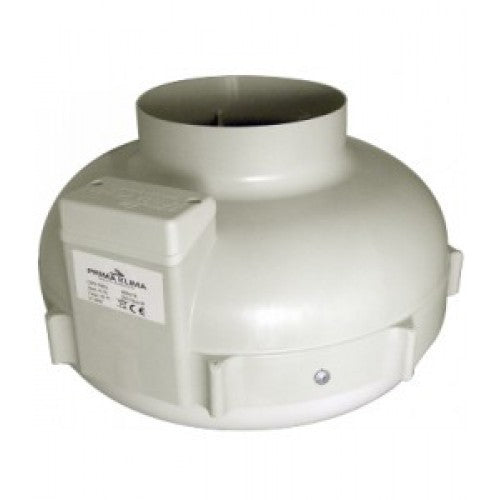

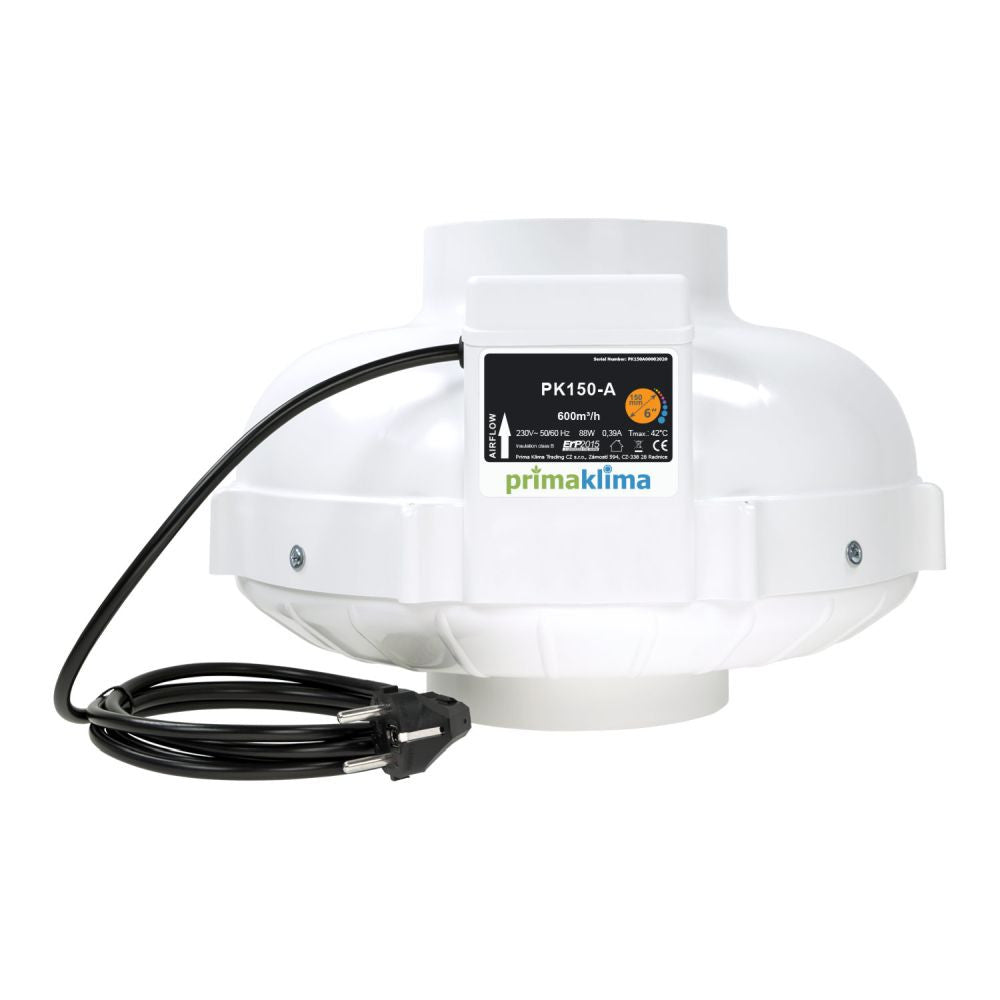

High-performance duct fan with an ebm-papst AC motor with backward curved blades. The housing is made of shock- and flame-resistant polyamide (nylon). Maintenance-free ball bearings ensure smooth motor operation.
Characteristics:
- ebm-papst AC Motor

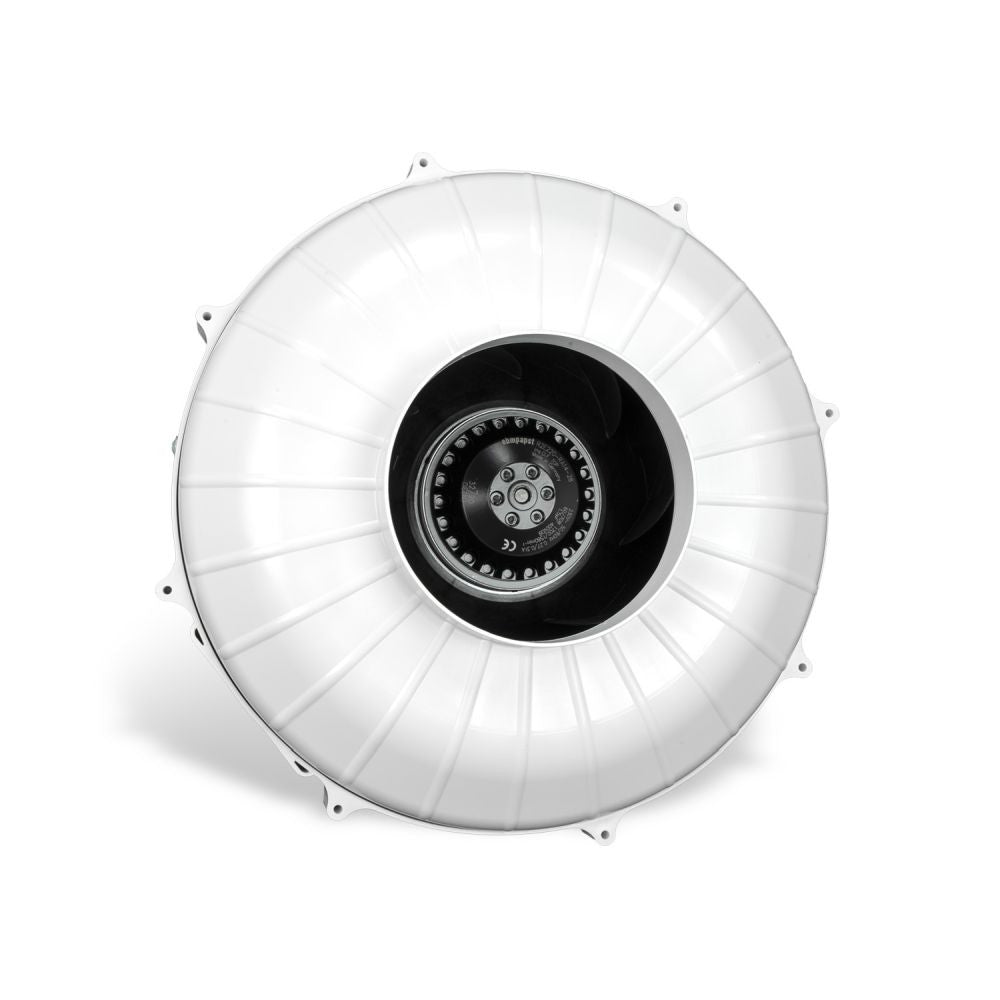

- Backward curved impeller
- Aerodynamically optimized shape
- Shockproof housing
- Integrated connection and control system
Technical specifications:
- flange: 150 mm
- Max. air flow: 600 m³/h
- Power: 88 W
- Voltage: 230V, 50/60Hz, 0.39A
- Tmax: 50 °C
- Dimensions: 338 x 233 mm (WxH)
- Weight: 3.2 kg
