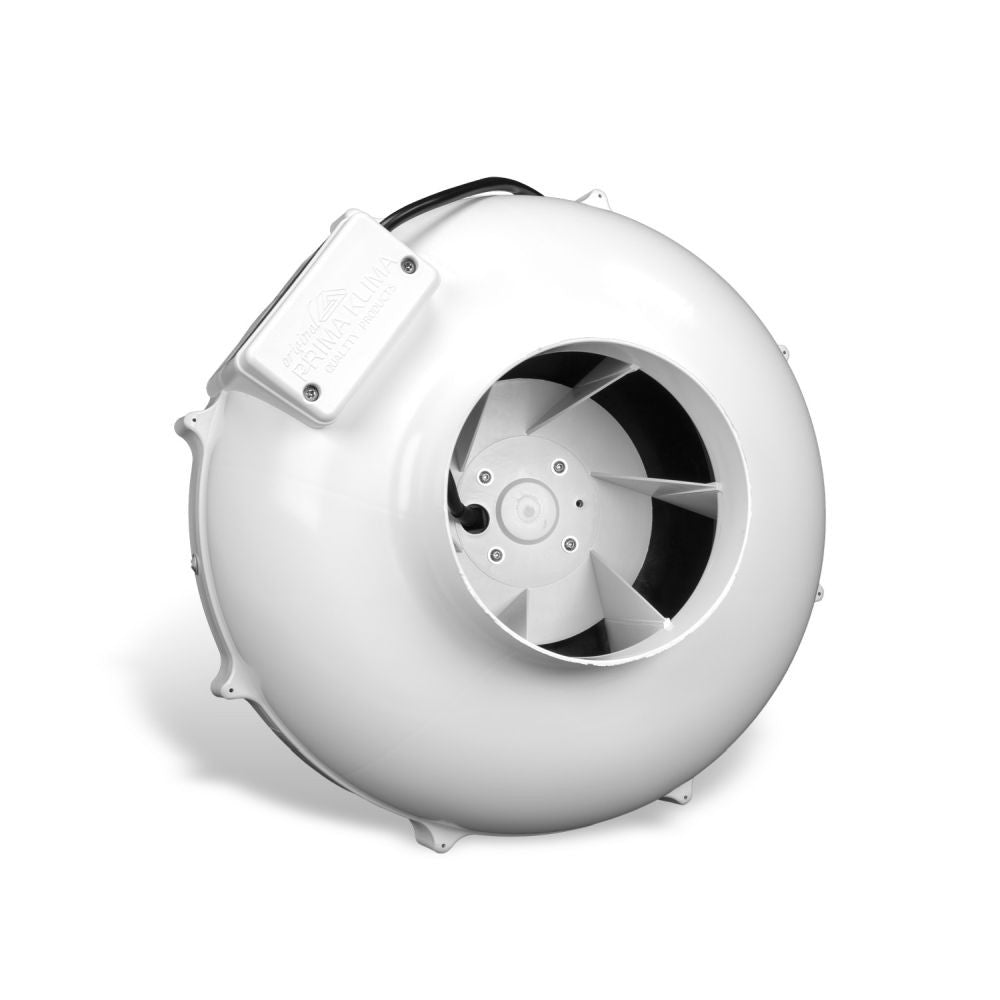

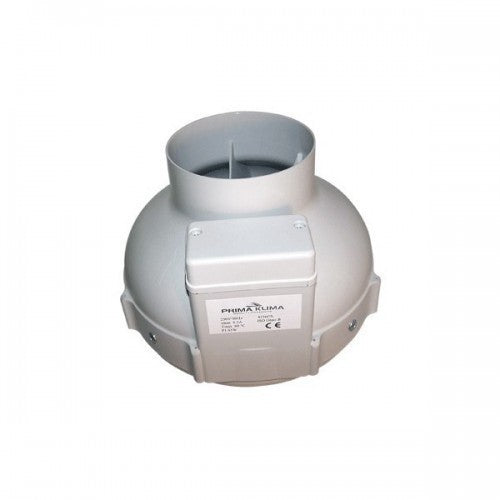

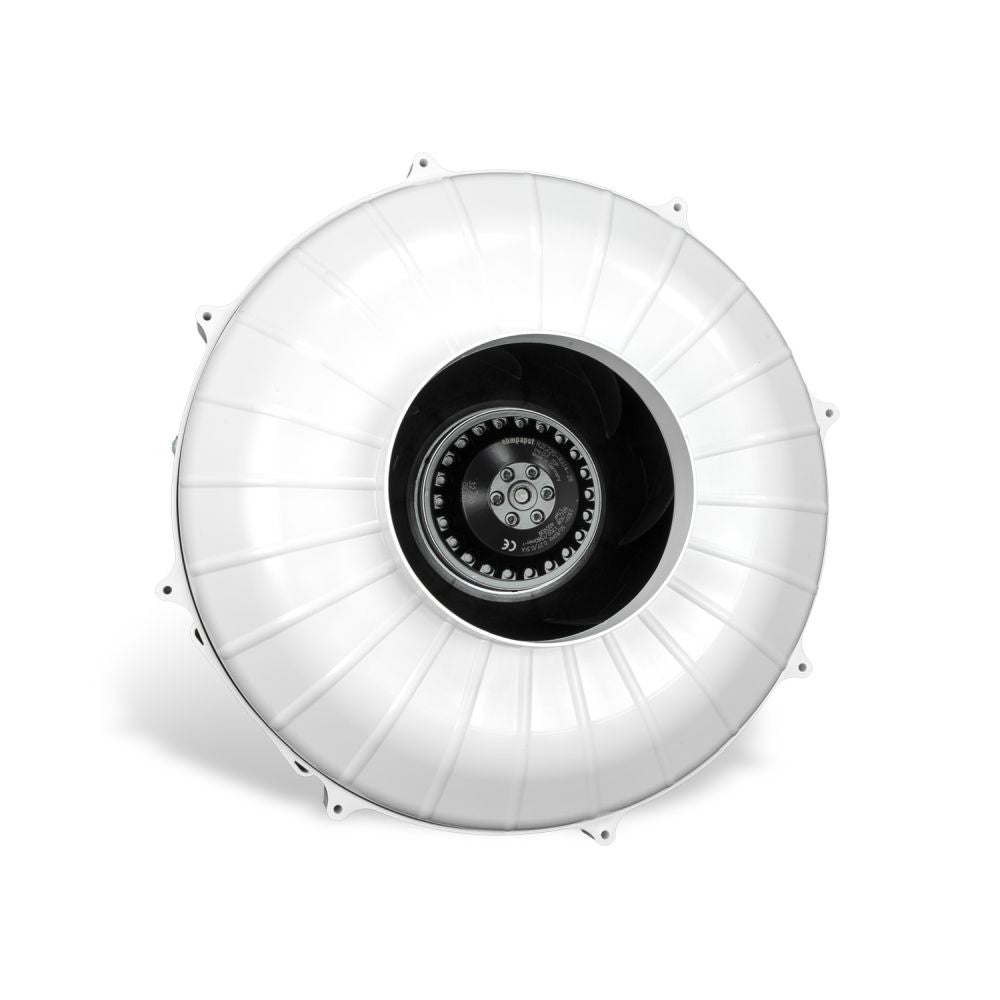

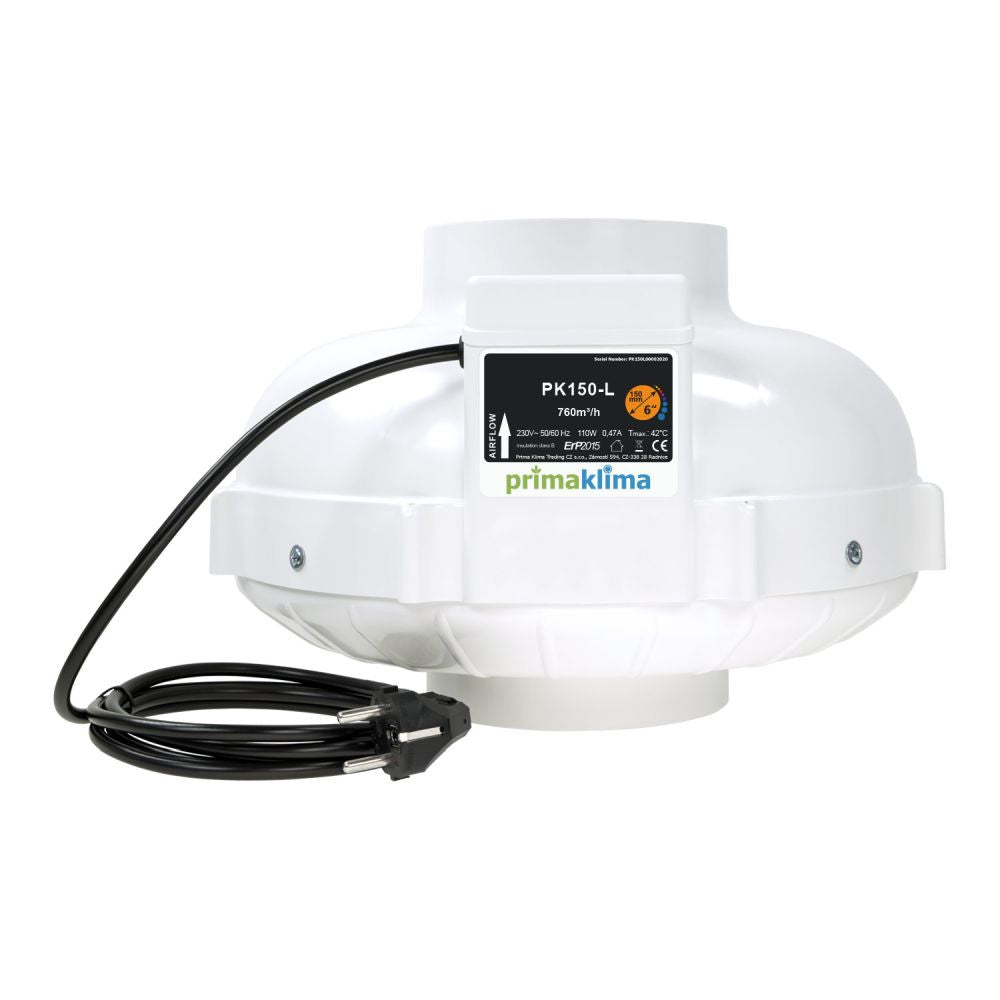

High-performance duct fan with an AC motor from ebm-papst and backward-curved blades. The housing is made of impact- and flame-resistant polyamide. Maintenance-free ball bearings ensure smooth motor operation. With integrated connection and control system.
Characteristics:
- ebm-papst AC Motor
- Backward curved blades
- Aerodynamically optimized shape
- Shockproof and robust housing
- Integrated connection and control system
Technical specifications:
- flange: 150 mm
- Max. air flow: 760 m³/h
- Power: 110 W
- Voltage: 230V, 50/60Hz, 0.48A
- Temperature range: max. 50 °C
- Dimensions: 338 x 233 mm (WxH)
- Weight: 3.3 kg
