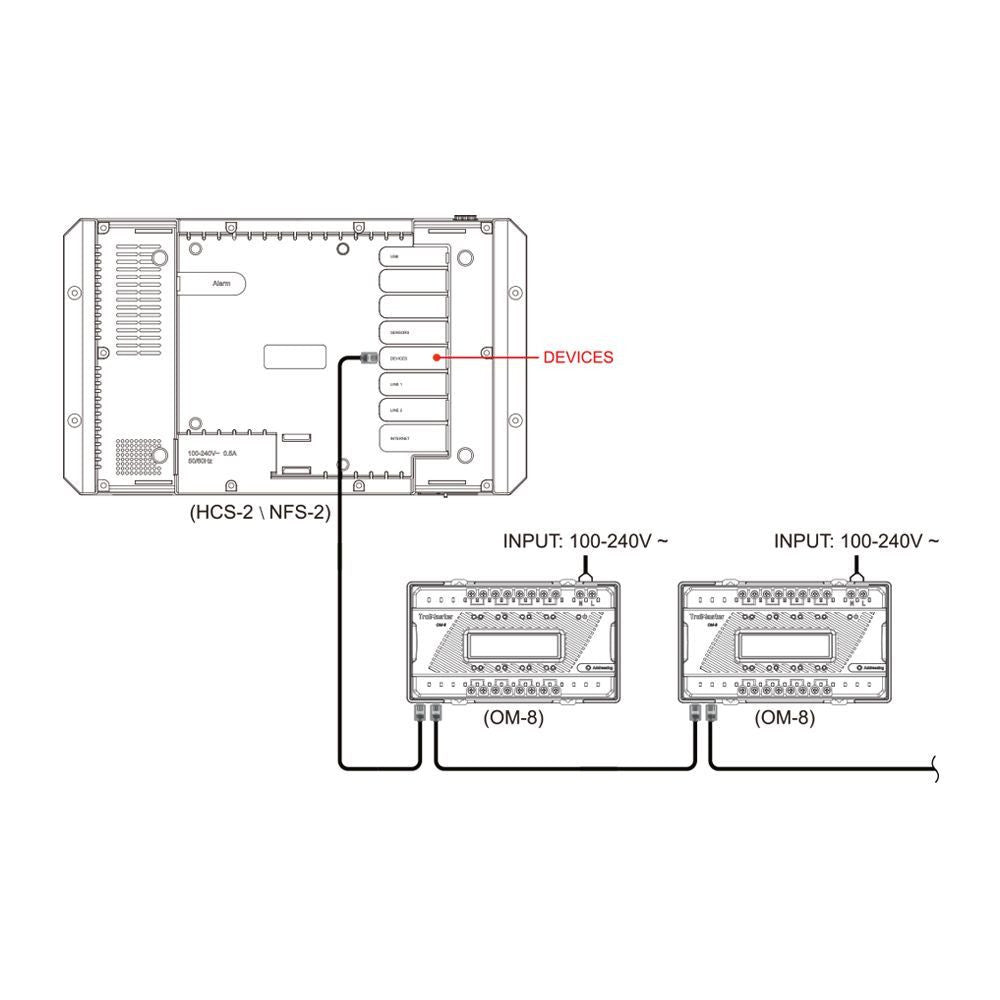

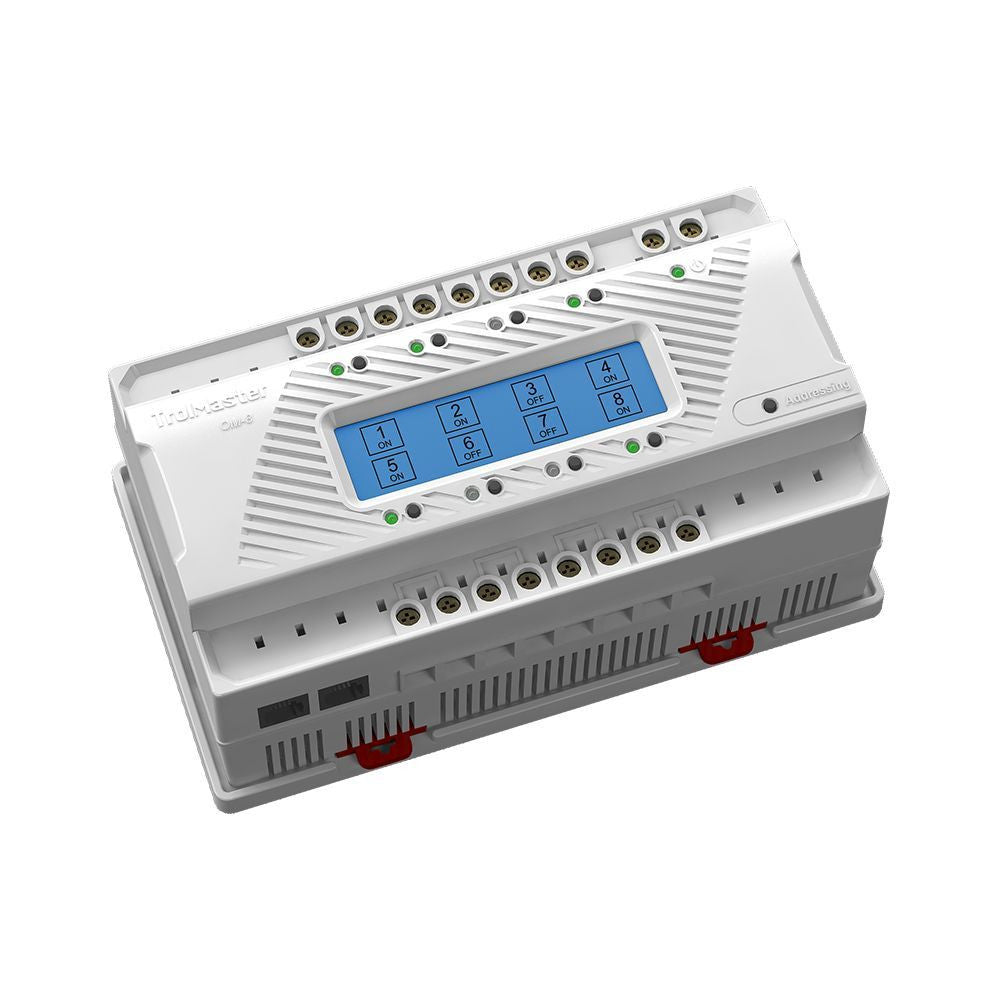

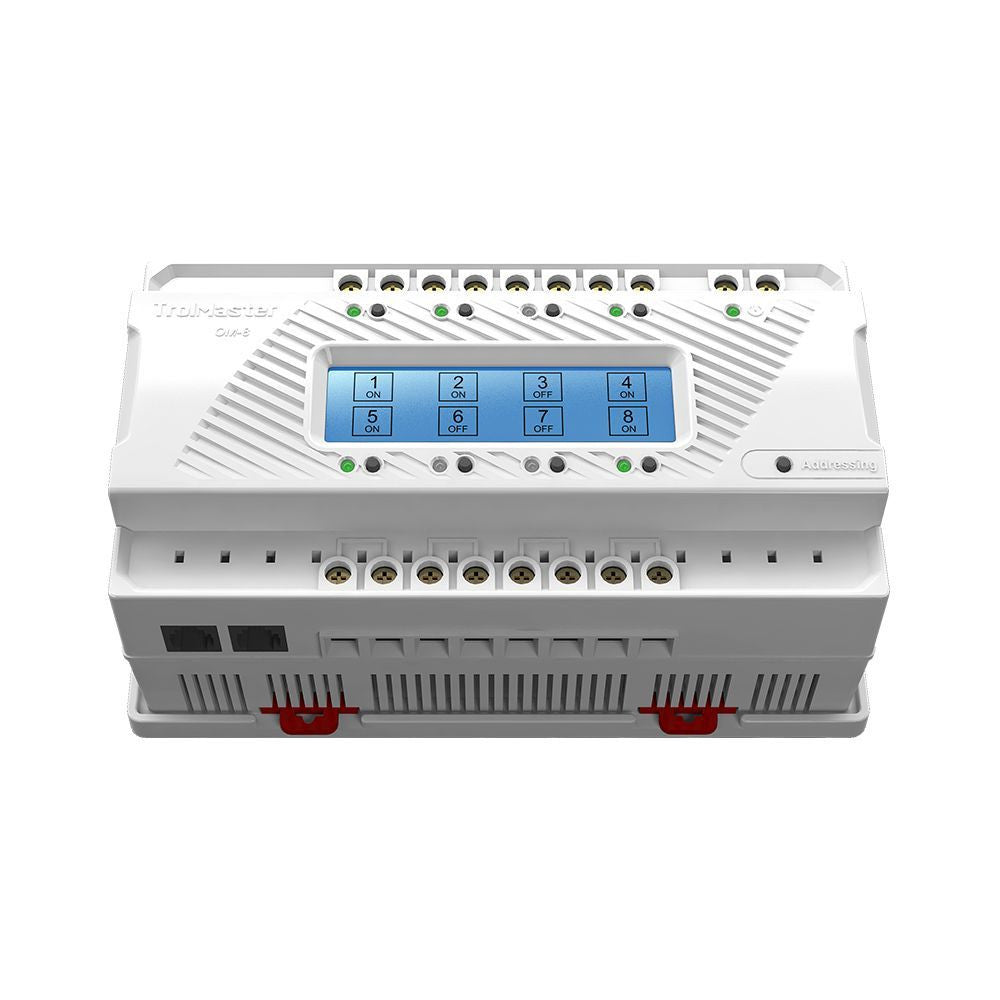

The Trolmaster OM-8 dry contact board allows the main controller to control up to 8 individual outputs. Specifically designed for the Hydro-X Pro and Aqua-X Pro system, it features 8 electrical contacts with a current capacity of up to 12A per contact. The OM-8 should be mounted in an electrical control panel and connected to a 100-240V AC power supply.
When used with the Aqua-X Pro system, the OM-8 can activate pumps/solenoids with a current of over 12A. The LCD display allows for easy setup and operation, while overload protection on each of the 8 outputs at 12A provides safety. Each contact can be forced open or closed for 30 minutes. Installation is straightforward and the package includes 1x OM-8 and 1x 16 ft RJ12 cable.
